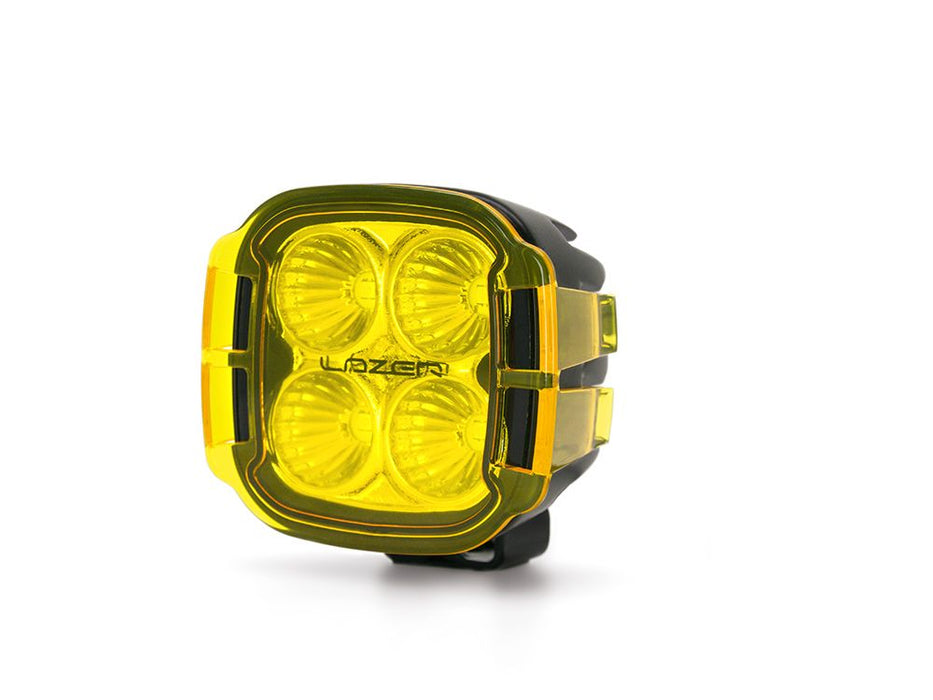

UTILITY-25 MAXX

WxDxH - 80mmx56mmx80mm

4560 LUMENS

Original price £120.00 - Original price £142.00
Original price
£120.00
£120.00 - £142.00
Current price £120.00

price includes VAT

From Excluding VAT

The latest in the Lazer Lamps’ range of LED work lights, the Utility-25 MAXX is a hugely versatile, medium-duty work light. The lamp incorporates higher output 11W LEDs to deliver seriously impressive lighting performance, especially considering the lamps’ comparatively small proportions, something made possible through continued improvements in LED electronics design, coupled with the lamps’ robust physical design. Sharing product DNA with the larger Utility-45 and Utility-80 heavy duty work lights, the lamp is built tough and engineered to deliver constant, reliable light output perfectly tuned to a broad range of applications and vehicle types.

Measuring 80mm x 80mm, and capable of operating between 9-32V, the Utility-25 MAXX utilises highly efficient 11W LEDs from a world-leader in LED design and manufacture. Like all Lazer products, the colour temperature of the LEDs is carefully selected at 5000 kelvin to maximise sharpness and definition of the area ahead, without causing fatigue or strain which can come from using LEDs with a higher colour range. The vacuum-metallised optics harness the 4,560 raw lumens delivering 78 degree spread (to 10% of peak intensity). The impressive lighting performance is maintained through the high thermal conductivity of the ‘Matrix’ cooling system which allows the lamp to be run at a higher drive current without compromising the longevity of the LEDs themselves.

Designed and manufactured in the UK, the Utility-25 MAXX is a product built to last, and to withstand harsh environments, backed up by a comprehensive 5yr warranty*. The polycarbonate lens with hardcoat, is bonded in place to guarantee water-tightness (IP69K), while the lamps have undergone extensive testing to comply with EU regulations in relation to vibration, shock, and corrosion resistance. Advanced electronic design ensures full EMC protection to CISPR-25 (Class 4)† standards.

Supplied with male/female Deutsch connectors (part no. DT04-2S/DT04-2P), the Utility-25 MAXX also comes supplied with a satin black-painted stainless-steel mounting system, which allows flexibility in mounting the light in many different orientations.



* - 5 Year Warranty applies for Automotive and Commercial Fleet use, all other applications a 2 Year Warranty period applies.

† - CISPR-25 (Class 4) applies to 12V usage only unless specified.

† - CISPR-25 (Class 5) applies to 12V usage only unless specified.

Shipping

If not in stock, we order these products upon order, from the manufacturer, you should expect a 5-7 days leadtime from order.

ECE (Reg 10) approved Work Light
CAE optimised 'Matrix' cooling system
Advanced optical design delivers superior lighting performance
Electronic thermal management
Certified IP67/IP69K watertight
Automotive grade corrosion resistance (ISO 9927 / BS EN 60068)
5,000 kelvin light temperature for maximum definition
EMC protected - CISPR 25: 2008 (Class 4) certified
Vibration Certified (BS EN 60068) : 10Hz - 2000Hz, 1 oct/min, 10gn
Over voltage protected
Reverse polarity protected
Male and female 2-pin Deutsch connectors included
5 Year warranty*
Made in Britain

Voltage Range (DC) 10-32V
LED Life 50,000 hours
Weight 360 gr
HIGH BEAM FUNCTION
Total Luminous Flux 3016 Lm
Colour Temperature 5000K
Number of High Output LEDs 4
Power Consumption 25 Watts
Current Draw (at 14.4V) 1.6 Amps
CERTIFICATION
Work Lamp ECE R10
IP Rating IP68 / IP69K
Salt Spray Test ISO 9227 (2000H)
EMC Protection CISPR-25 (Class 5)
OPERATING CONDITIONS
Vibration (BS EN 60068) 10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Operating Temperature -40deg C ... +90degC
DIMENSIONS
Width 80 mm
Depth 56 mm
Height 80 mm
PHOTOMETRIC DATA
1Lx Line @ 54m
5Lx Line @ 24m
20Lx Line @ 12m
50Lx Line @ 7m*
* - 50Lx represents HSE guidelines for effective illumination when working outdoors at night.

.1x Utility-25 Work Lamp
1x Uility-25 Centre Mount (supplied attached to lamp)
